The Detached Garage

$149.00

The Detached Garage is a free‑standing single‑car garage with an attached carport, designed for flexibility and straightforward construction. Because the garage is free‑standing, you have greater freedom for siting it on your lot to suit driveway access, property lines, sightlines, or to preserve existing landscaping.

This 11×17 Design Development Drawing Set includes the following information your builder will need to prepare an accurate cost estimate:

  • Title page with two exterior renderings and project information

  • Conceptual Site Plan to show an example of where the garage can be sited relative to your home and property lines

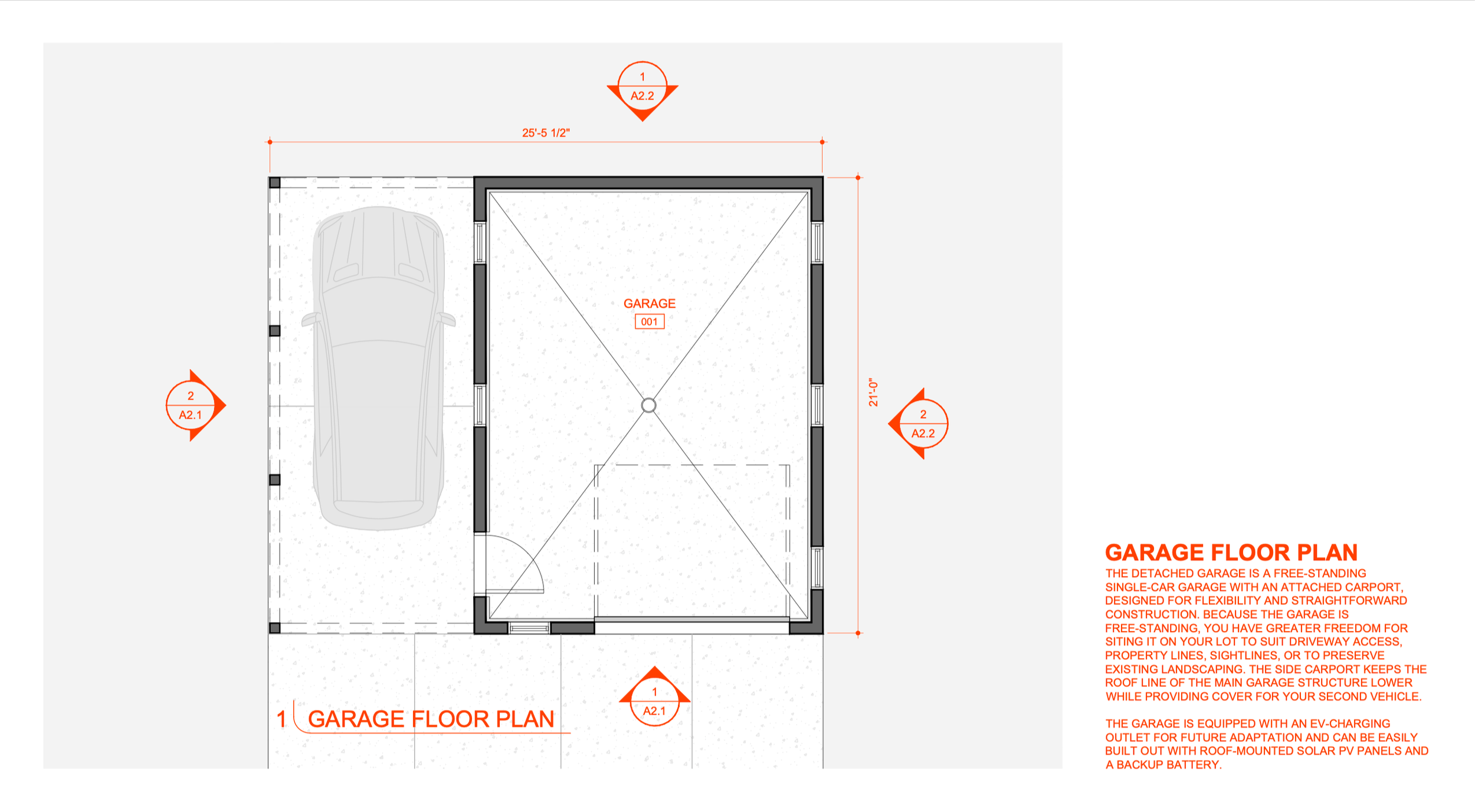

  • Floor Plan, Roof Plan, and Foundation Plans (Final Foundation Details to be provided by your local Architect or Engineer)

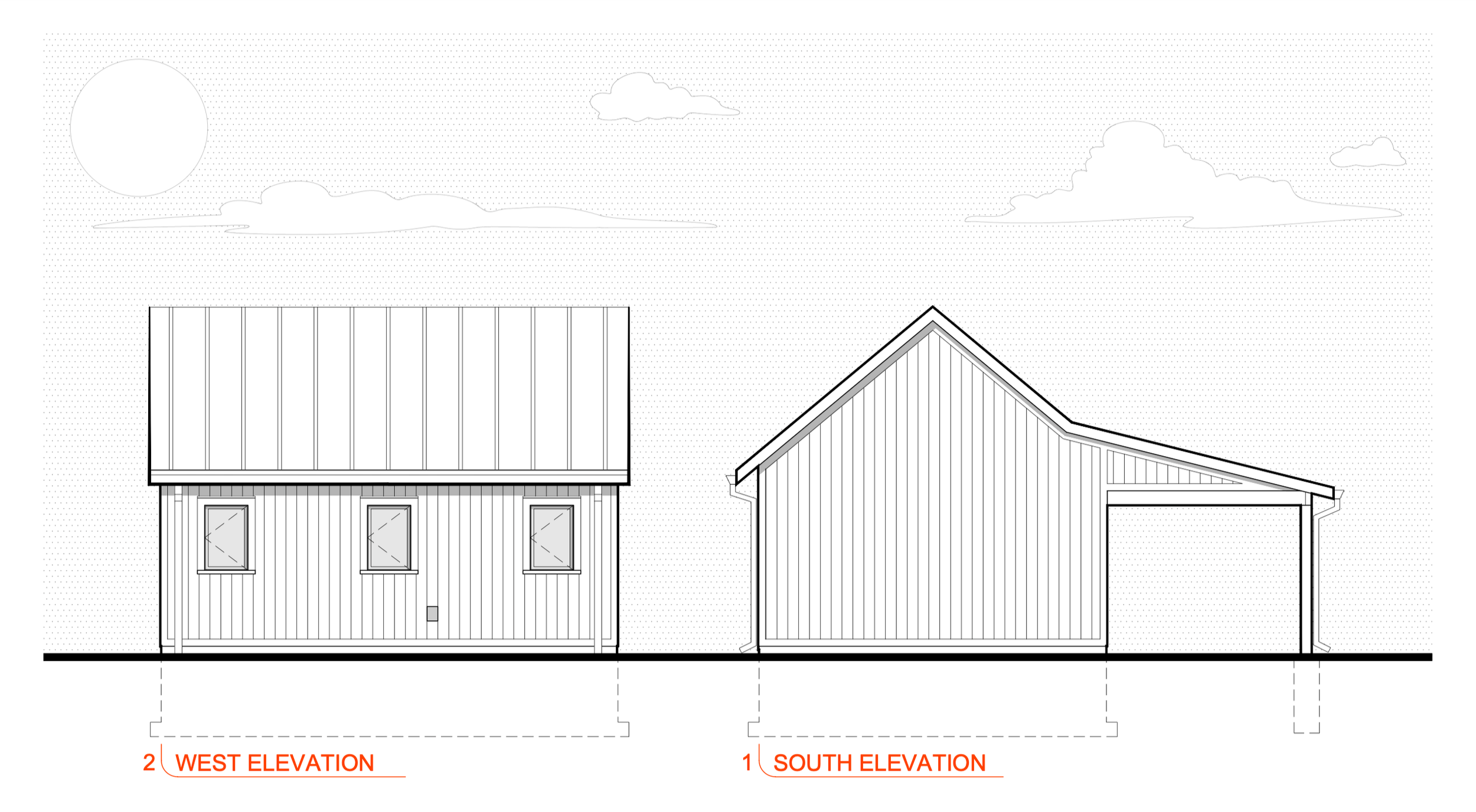

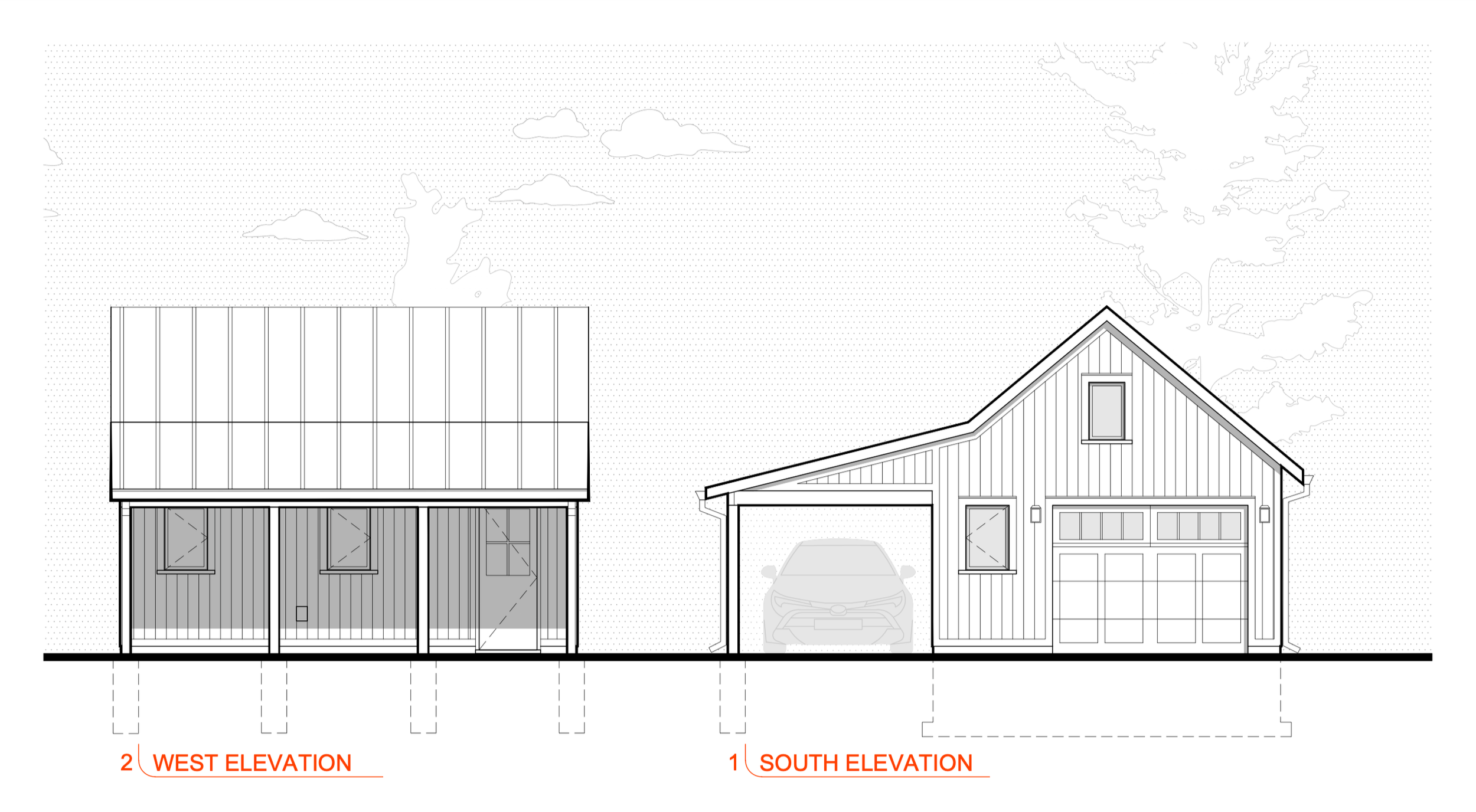

  • Exterior Elevations Sheets showing exterior materials, roof slopes, and pertinent elevation heights

  • Conceptual Foundation and Slab Details Pages including footing sizes, reinforcement, and slab thickness (Final Details to be provided by your local Architect or Engineer)

  • Door and window schedules with sizes and rough‑opening details

  • Typical wall and roof sections and details

  • Conceptual Electrical layout indicating lighting, outlets, and provision for garage door opener

  • License Agreement for using these plans to build your garage

The Detached Garage set is ready to review with your builder to confirm scope, materials, and any site‑specific adjustments (foundation type, utility locations, or grading).

The Detached Garage is a free‑standing single‑car garage with an attached carport, designed for flexibility and straightforward construction. Because the garage is free‑standing, you have greater freedom for siting it on your lot to suit driveway access, property lines, sightlines, or to preserve existing landscaping.

This 11×17 Design Development Drawing Set includes the following information your builder will need to prepare an accurate cost estimate:

  • Title page with two exterior renderings and project information

  • Conceptual Site Plan to show an example of where the garage can be sited relative to your home and property lines

  • Floor Plan, Roof Plan, and Foundation Plans (Final Foundation Details to be provided by your local Architect or Engineer)

  • Exterior Elevations Sheets showing exterior materials, roof slopes, and pertinent elevation heights

  • Conceptual Foundation and Slab Details Pages including footing sizes, reinforcement, and slab thickness (Final Details to be provided by your local Architect or Engineer)

  • Door and window schedules with sizes and rough‑opening details

  • Typical wall and roof sections and details

  • Conceptual Electrical layout indicating lighting, outlets, and provision for garage door opener

  • License Agreement for using these plans to build your garage

The Detached Garage set is ready to review with your builder to confirm scope, materials, and any site‑specific adjustments (foundation type, utility locations, or grading).

  • 17-page PDF (Download only, no prints will be mailed)

    • Cover Sheet with Project Information

    • License Agreement for Concept Plans

    • Conceptual Site Plans (Scale: 3/32” = 1’-0”)

    • Foundation Plan (Scale: 1/4” = 1’-0”)

    • Garage Floor Plan (Scale: 1/4” = 1’-0”)

    • Roof Plan (Scale: 1/4” = 1’-0”)

    • Garage Electrical Plan (Scale: 1/4” = 1’-0”)

    • Exterior Elevations (Scale: 1/4” = 1’-0”)

    • Building Section (Scale: 3/8” = 1’-0”)

    • Wall Section Details (Scale: 1-1/2” = 1’-0”)

    • Window and Door Details (Scale: 1/2” = 1’-0”)

    The Design Development Package includes everything you need to get your project moving forward towards construction. You'll receive a PDF document with detailed design documents for your builder to use to price the home. This will include detailed and dimensioned floor plans, detailed exterior elevations, enlarged floor plans, detailed wall sections, enlarged typical details, conceptual lighting and power plans, and conceptual framing plans. It will also include the license to build one home. While this does not include the Architect / Engineering Stamp, this package provides all the documentation needed to get your project moving.

    This package still needs to be reviewed and stamped by a local Architect or Engineer before permitting and Construction can begin.

    • Local Engineering Review (snow, wind, seismic, etc.) + Local Code Compliance Check

    • Final Exterior Materials, Finish + Color Selections (Design intent is suggested + shown, but subject to your review)

    • Final Lighting Fixture Selections (Design intent shown but subject to your review)

Please see the License Agreement for information regarding use of our drawing packages. By purchasing this drawing set you are agreeing to these license terms.

License Agreement
